Deployment Overview ​

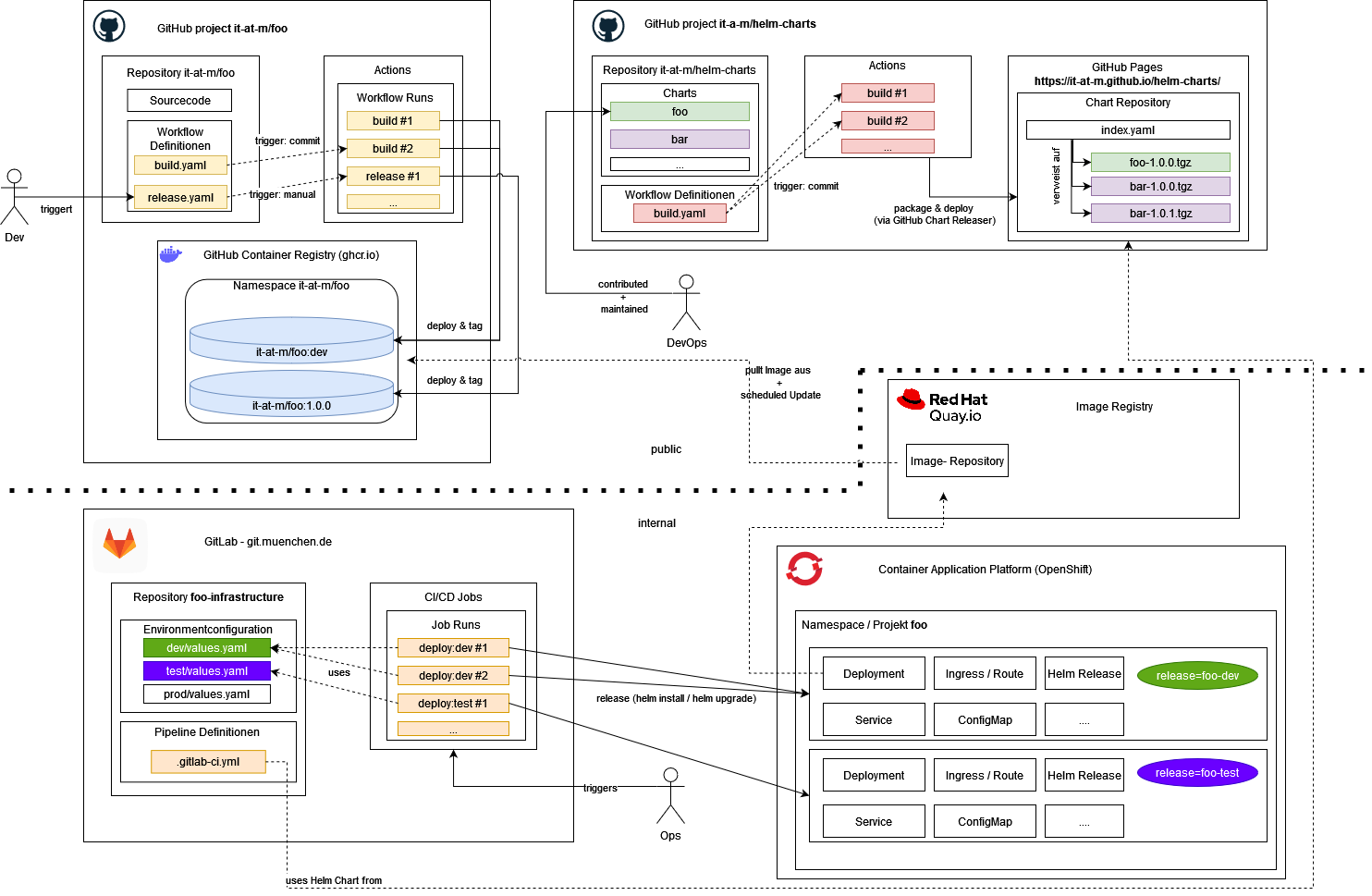

architecture-overview _The diagram shows an overview of the steps for delivering our applications, from code changes to deployment in our environment:

  1. GitHub Project it-at-m/foo: Add code changes, compile and build code, build images
  2. GitHub Project it-at-m/helm-charts: Provide helm charts for project images
  3. Image Registry Quai.io: Internal image registry, synchronized with our project images
  4. GitLab git.muenchen.de: Internal Git repository to run deployment pipelines
  5. OpenShift Container Application Platform: Internal kubernetes plattform to run applications

You can find further details in the following chapters._

Source repository (GitHub Project it-at-m/foo) ​

Execute GitHub Actions to compile and build code, build images. For more information see workflows.md.

Helm Chart (GitHub Project it-at-m/helm-charts) ​

In the repository it-at-m/helm-charts we provide helm charts for Docker images created in our project repos. We created a template-chart. You can configure dynamically in the values.yml the frontend, backend, eai Docker image.

Internal Deployment (Image Repository Quay, Git Repository GitLab git.muenchen.de, Kubernetes platform OpenShift) ​

What are we using internally ​

  • Image Registry Red Hat Quay to synchronize Docker images
  • GitLab to execute internal infrastructure pipelines (IaC) and configuration of the applications
  • OpenShift, our Kubernetes platform to host the applications

How it works together ​

Autorollout: For the dev environment (only not prductive enviornment) ​

An automatic rollout is implemented. We create an image stream that links to the internal image registry (Quay). The deployment includes a special annotation that prompts the internal kubernetes platform (OpenShift) to automatically trigger a new rollout when a new image becomes available. For more details, see this documentation.

manual rollout for the deployment in productive and close to productive environments ​

For other environments (stage, prod), a manual rollout is implemented. You have to specify the image version for each service in the Helm configuration file values.yml as well paying attention to use the image from the internal image registry and not from the GitHub Registry.
